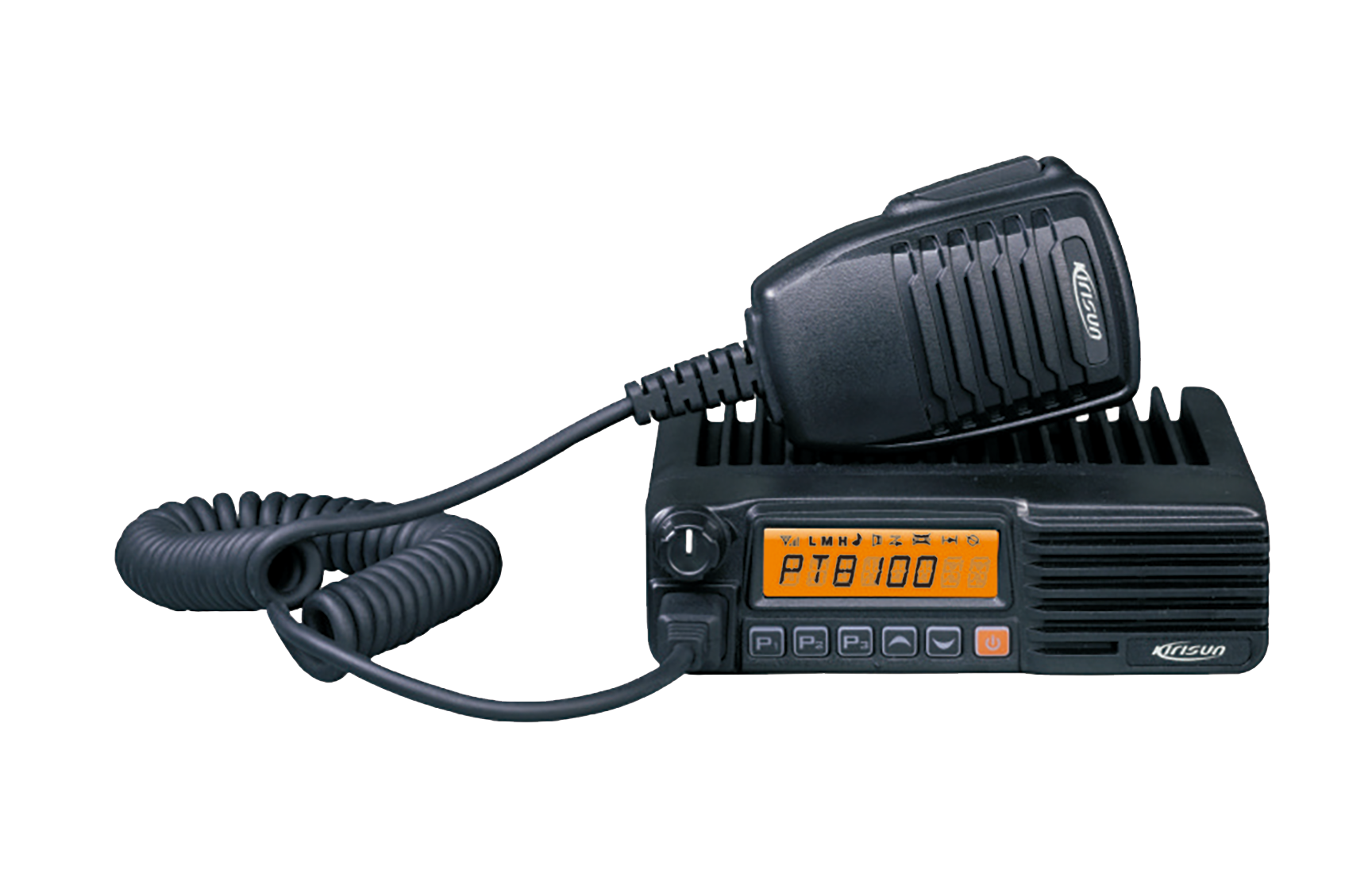

PT8100 Analog Mobile Radio
Analog
In-vehicle

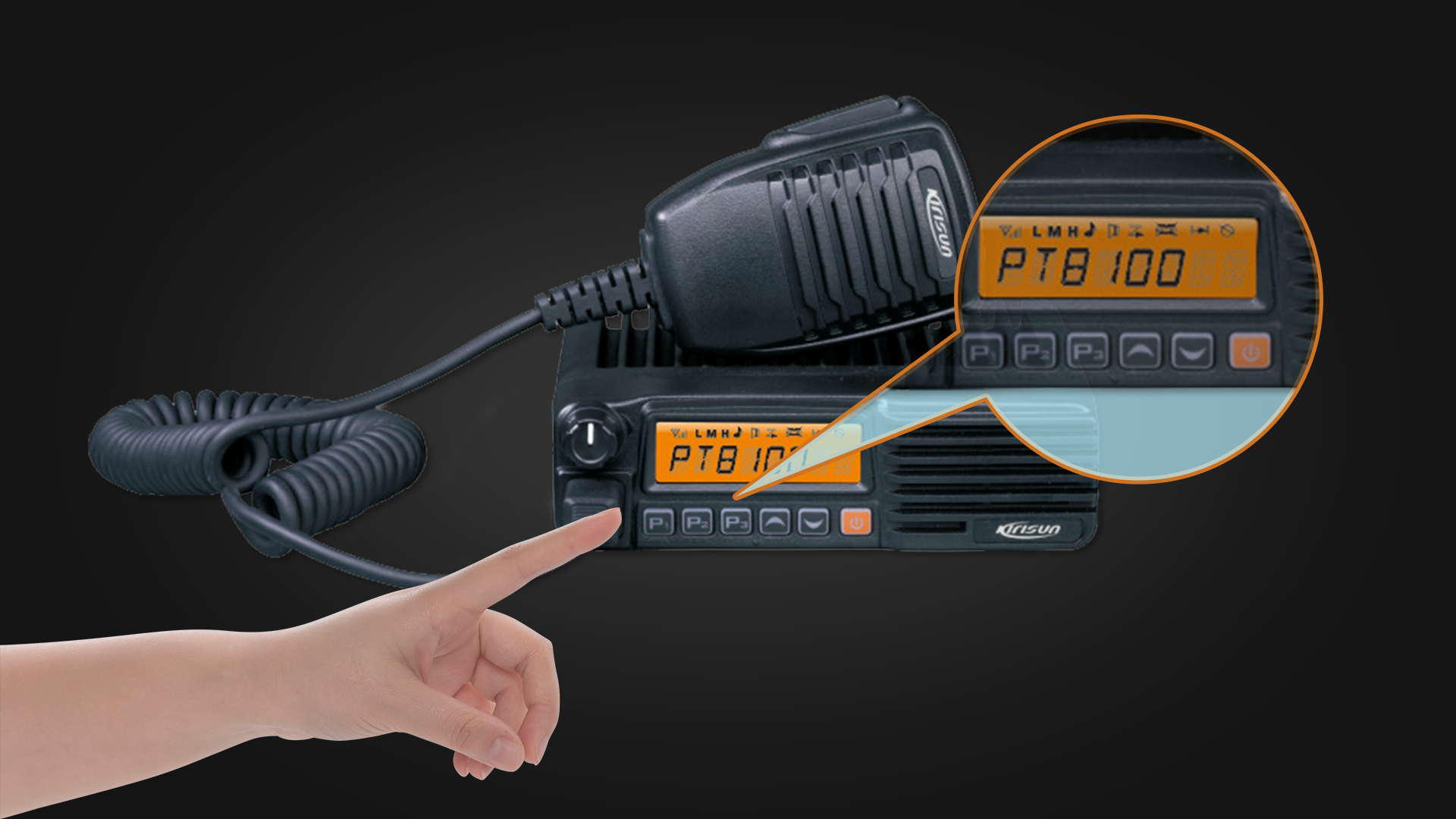

A versatile mobile radio, with a full color display.
Highlights
256 Memory Channels
256 channels can be separated into 16 memory banks; so user can quickly access pre-programmed contingency frequency plans. It is ideal for cross-region, cross-municipality communications.
Embedded Radio Information
With programming software, users could get the embedded information in the radio, such as serial number, MCU software and hardware version, last programmed method and time. The radio saves public and private message or welcome message.
5 Programmable Keys
Up to 5 Programmable keys can be set for different functions by holding or pressing on it.
Password Protection
Data reading and radio programing is protected by a password.

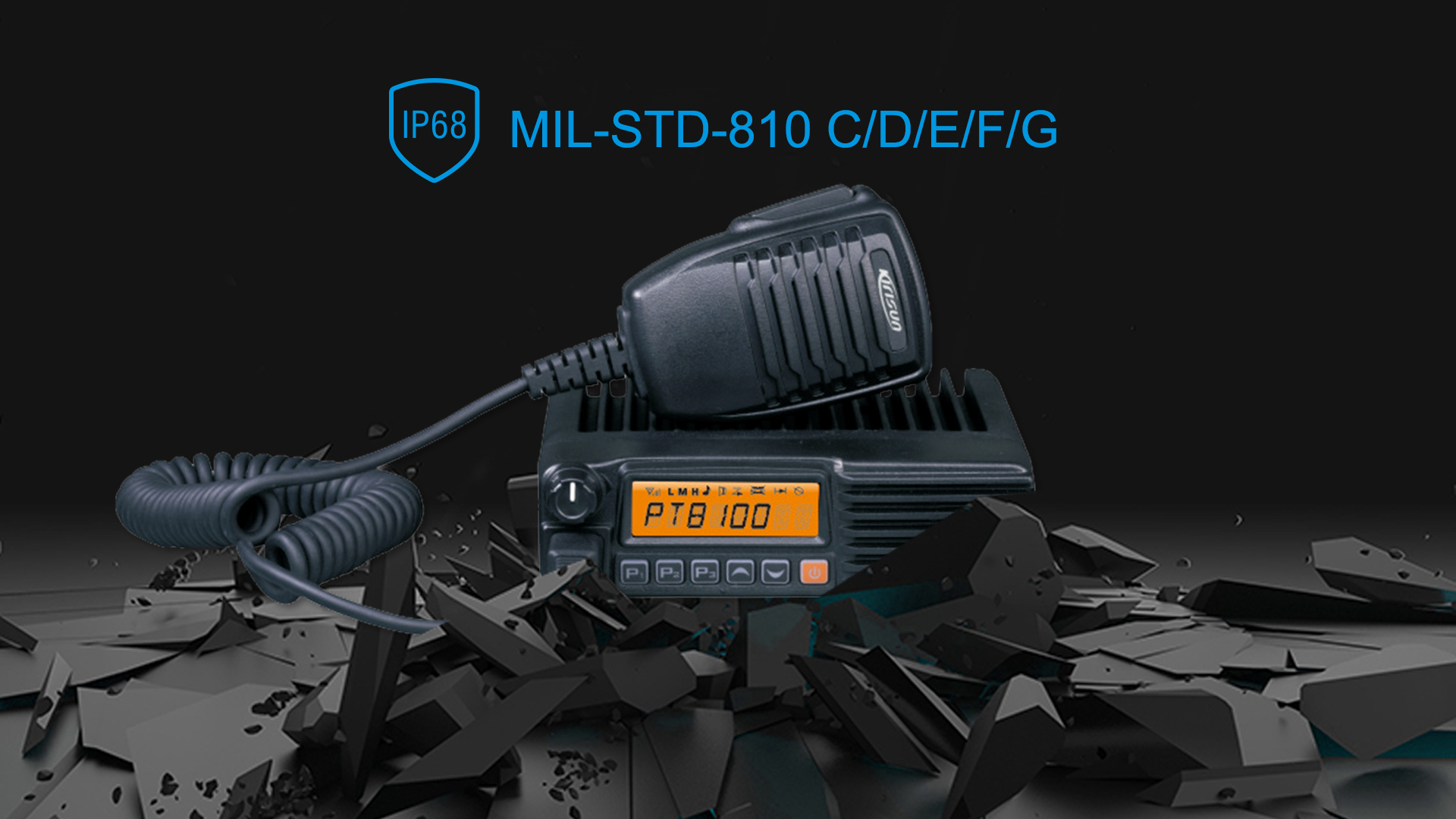

MIL-STD 810 C/D/E/F Ruggedness
T8100 is designed to meet MIL-STD 810 C/D/E/F specifications to survive physical and temperature shock, vibration, low pressure, and solar radiation.

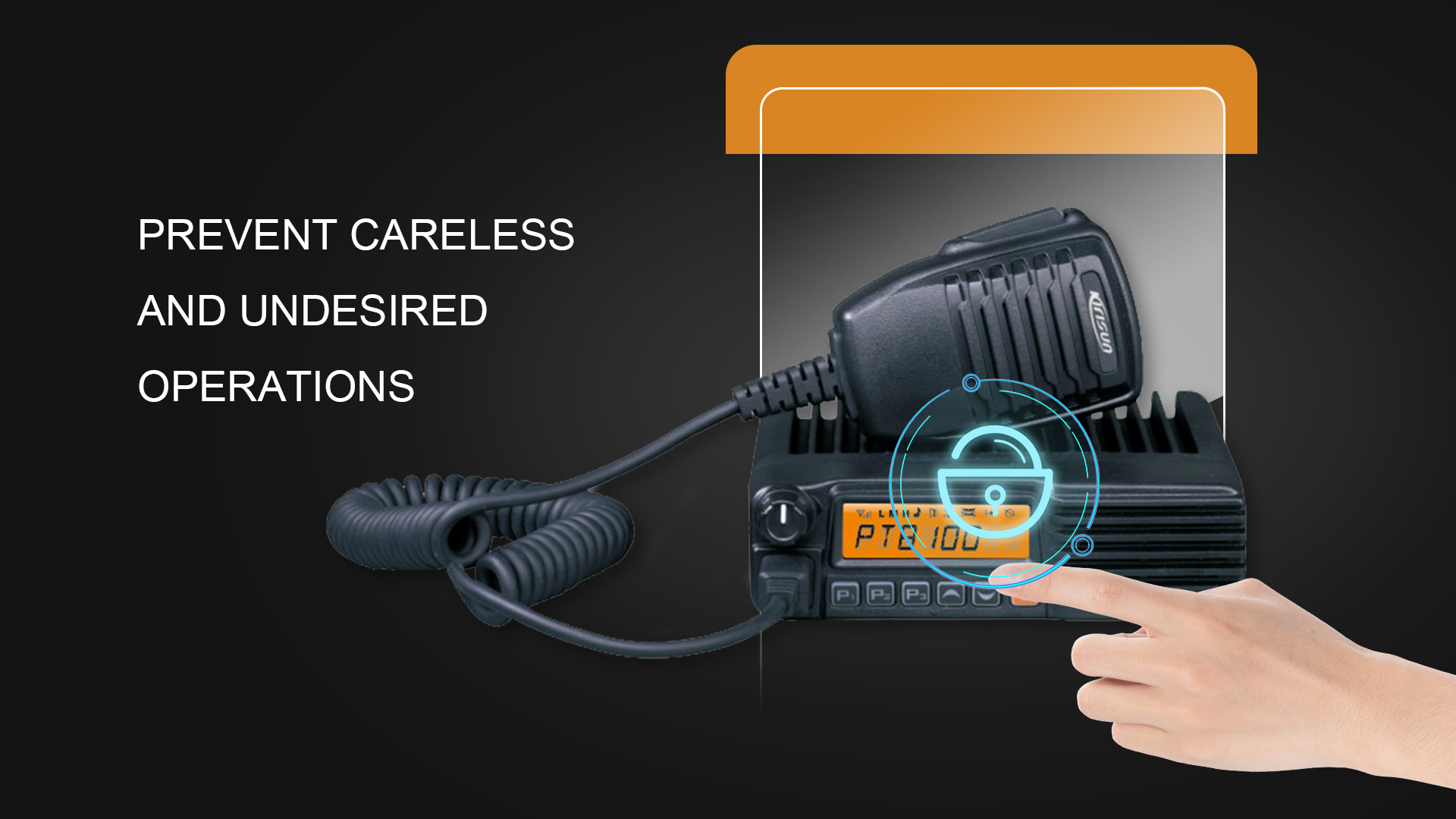

Key Lock
When this function is enabled, any operations on the key will be ignored. This helps to prevent careless and undesired operations.
Specification
General
Frequency Range
VHF: 136-174MHz;
UHF:400-450MHz, 438-490MHz；
Channel Capacity
256
Operating Voltage
13.6V DC±20%
Current Drain
Standby: <0.6A
Receive:<2.0A
Transmit: <8A(25W)
Dimensions(H·W·D)
150 × 131 × 43mm
Weight
About 1.3Kg
RF Power Output
5W/10W/25W
Sensitivity
Analog：0.25μV(12dB SINAD)
Operating Temperature
-30℃~ +60℃
Storage Temperature
-40℃~ +85℃
