DP585E DMR Portable Radio
Tier II
IP66
DP585E is a compact business DMR portable radio customized for reliable everyday communication in demanding field and operational environments. With IP66 protection, long battery life, enhanced noise cancellation, mixed analog/digital operation, and emergency functions, it helps teams improve coordination while keeping migration to DMR practical and controlled.
Download the brochure
Highlights

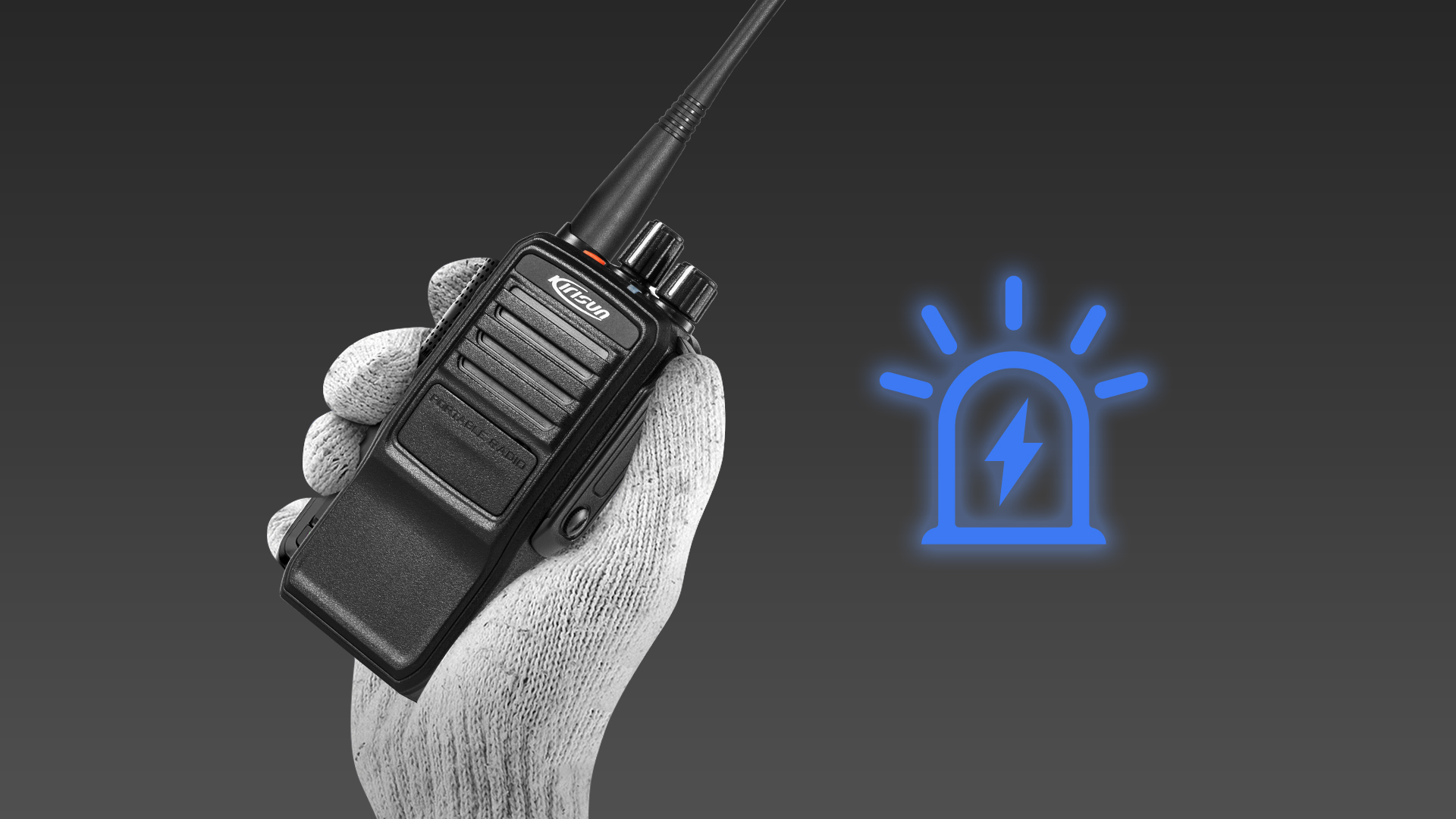

Emergency Alarms and Man Down
Emergency Alarms can be sent to other radios via the one touch programmable button and the feature of man down to improve worker safety and emergency response time.

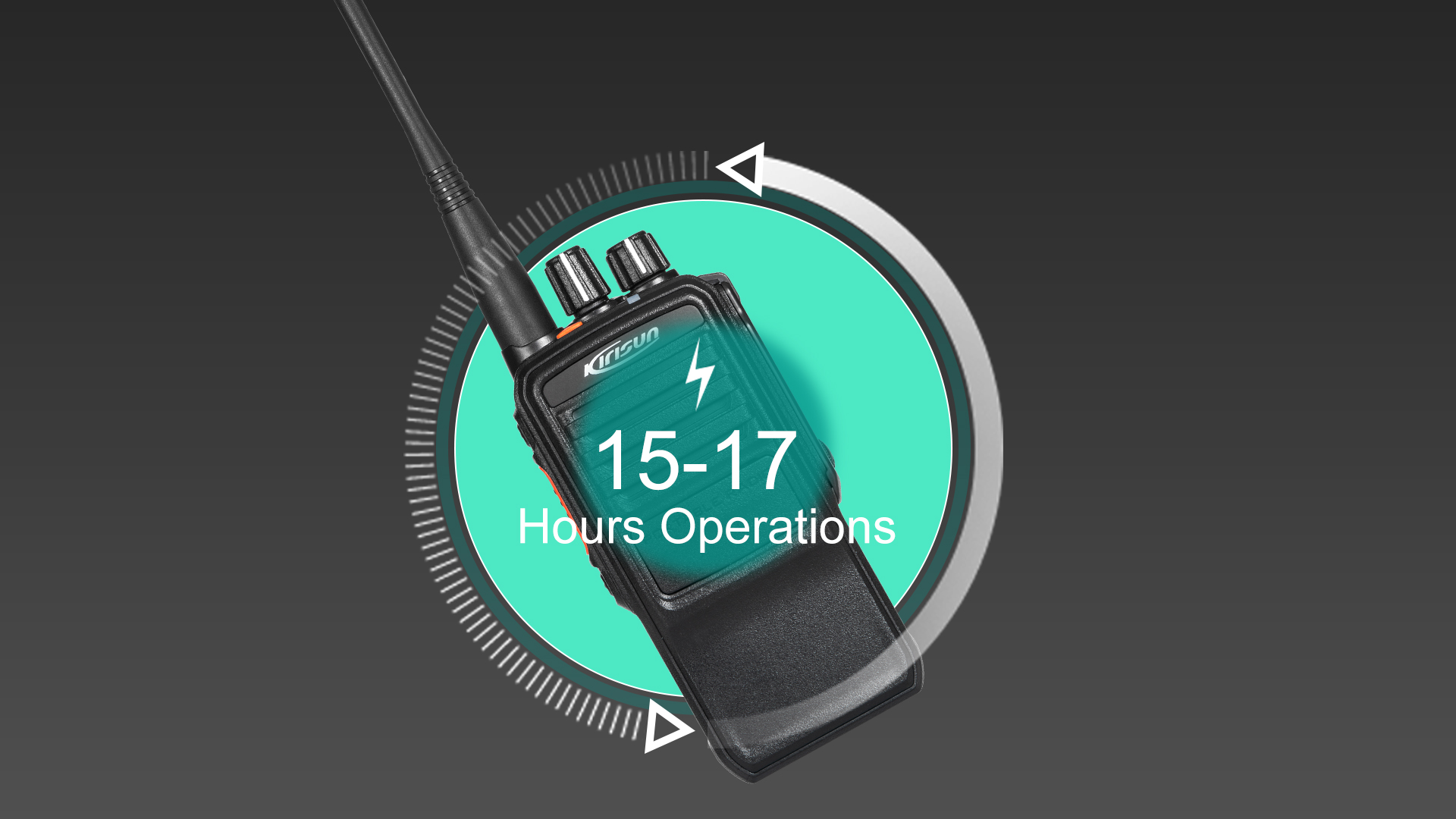

Long Shift Life Battery
The power-efficient design supports up to 16 hours in analog mode and 17 hours in digital mode with the standard battery. An optional 2500mAh battery is available for teams that need extended operation.

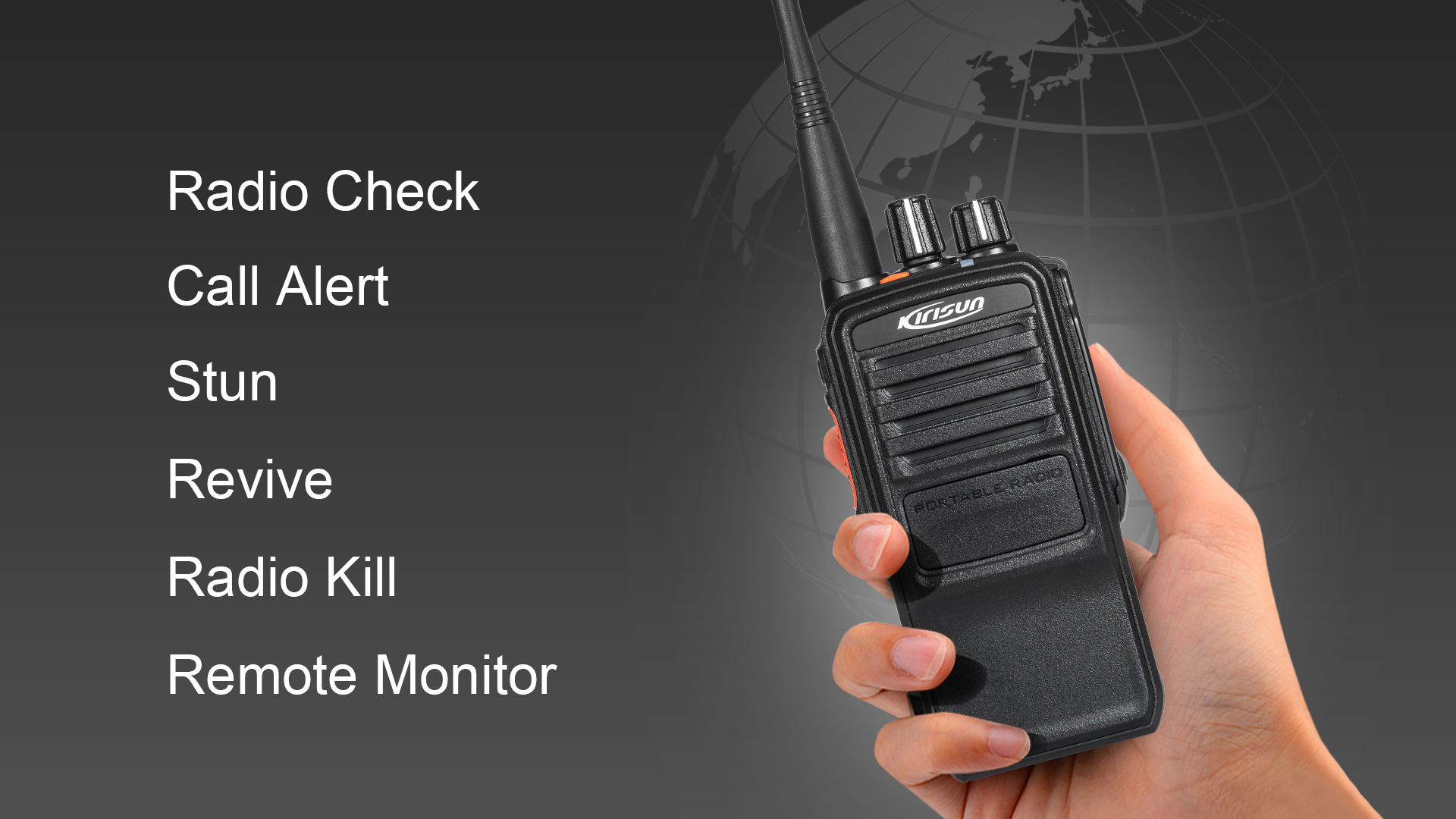

Digital Signaling for Easier Fleet Control
Radio Check, Call Alert, Stun, Revive, Radio Kill, and Remote Monitor provide useful tools for daily radio supervision. Teams can improve device control, user management, and operational responsiveness.

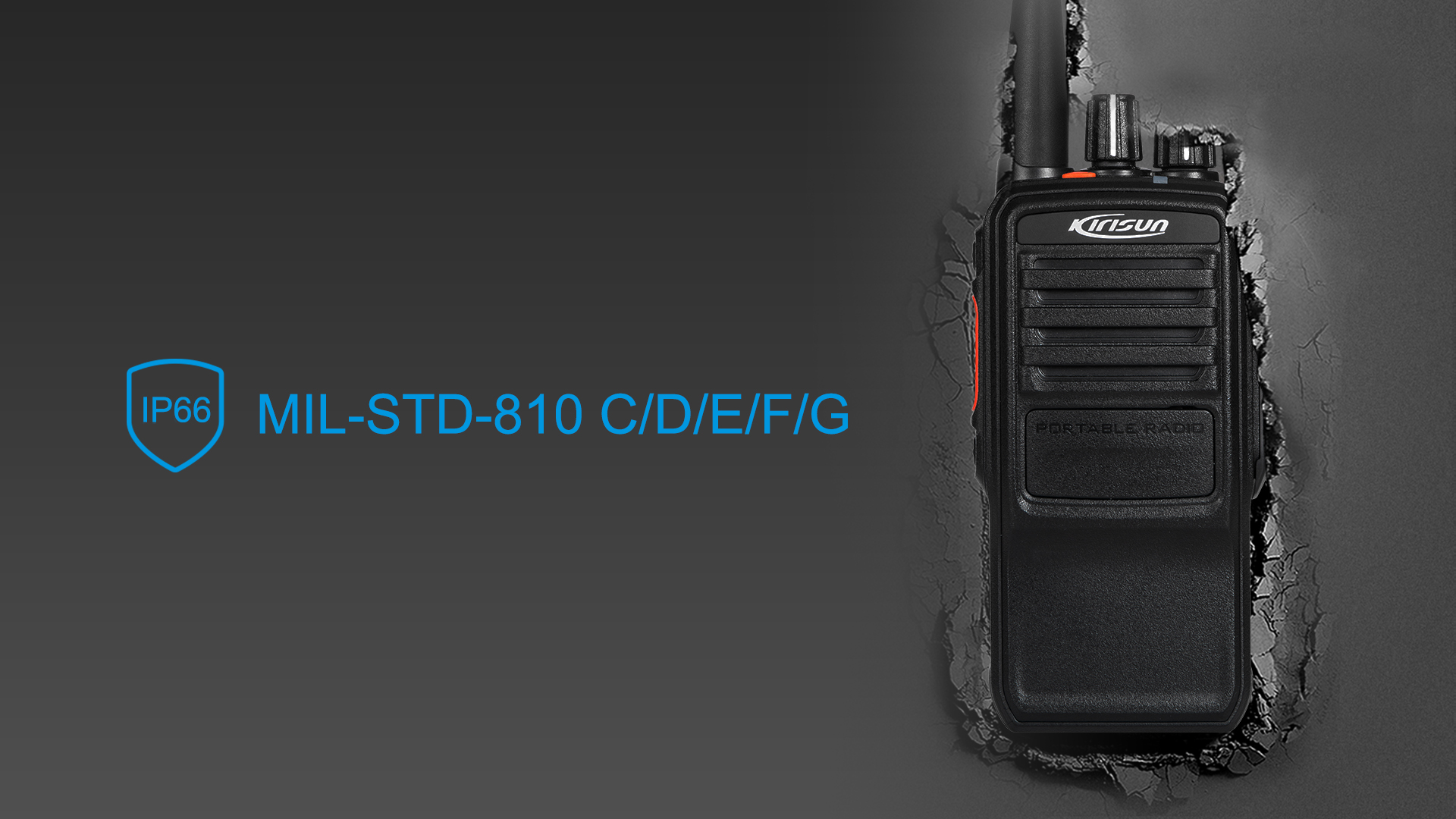

Reliable Protection for Daily Field Work
Designed to IP66 standards and tested to MIL-STD-810 C/D/E/F/G, DP585E is built for dusty, wet, and physically demanding job sites. Its durable design helps teams maintain dependable communication in construction, forestry, industrial parks, and public safety operations.
Specification
General
Frequency Range
VHF:136-174MHz;
UHF:400-470MHz;
Channel Capacity
256
Zone Capacity
16
Channel Spacing
Analog:25kHz/12.5kHz, Digital:12.5kHz
Operating Voltage
7.4V DC±20%
Battery
2000mAh Li-ion (standard) ,2500mAh Li-ion(optional)
Battery Life (5-5-90 Duty Cycle, High TX Power)
Analog:16 hours @2000mAh
Digital: 17 hours @2000mAh
Dimensions(H·W·D) (with standard battery, without antenna)
117.4*54*36mm(2000mAh)
Weight (with standard battery)
About 315g(2000mAh)
RF Power Output
VHF:1W/5W; UHF:1W/4W
Sensitivity
Analog:0.16uV@12dB SINAD (Typical)
Digital:0.18uV@BER5% (Typical)
Operating Temperature
-30℃~ +60℃
Storage Temperature
-40℃~ +85℃
Dust & Water Protection
IP66
